Current location:Home > Products > EPE Foam Series Equipment > EPE Foam Sheet Lamination Machine
Feature:

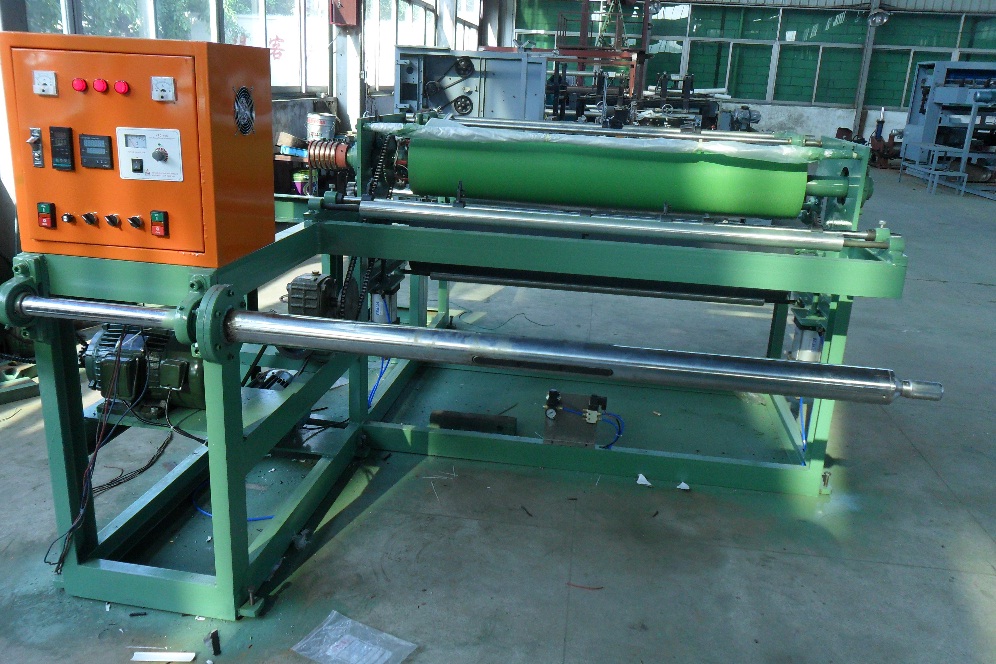

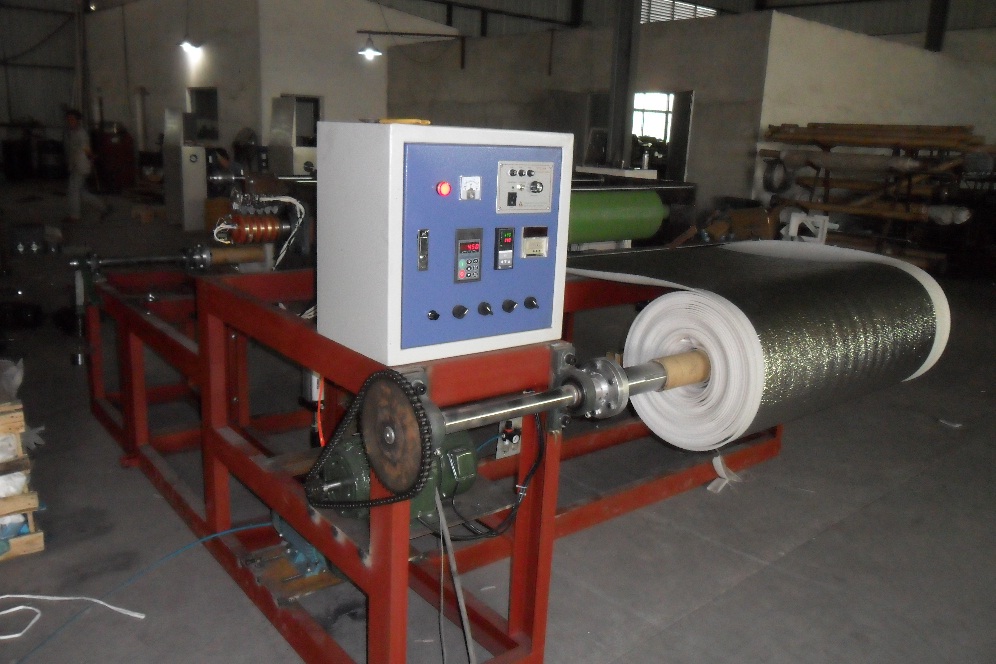

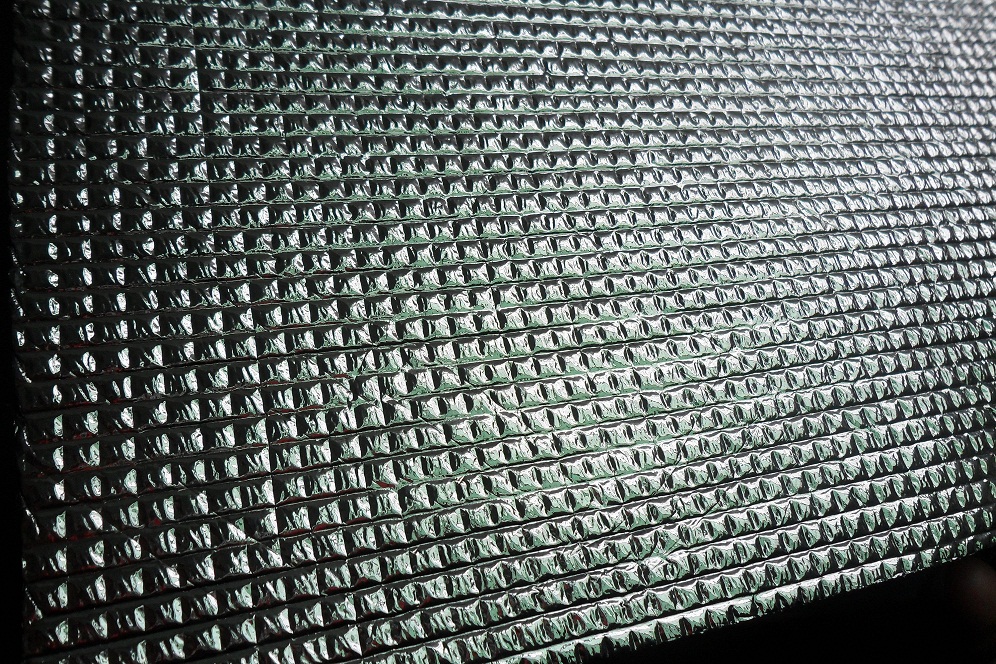

This machine laminate EPE sheet and plastic film,aluminiun foil or web paper by the hot roller which heated by electric power.the surface of the produce from this machine can be glaze or emboss.
Technical Parameters:
Model | Valid width | Main motor | Total power | Speed | Dimension |
1400 | 500-1300mm | 2.2kw | 18kw | 0-30m/min | 6000×2500×1800mm |
1750 | 500-1600mm | 2.2kw | 18kw | 0-30m/min | 6000×2800×1800mm |
2000 | 500-1900mm | 3.7kw | 22kw | 0-30m/min | 6000×3100×1800mm |
